DOG GPS X20
DOG GPS X20
Couldn't load pickup availability
The professional search device is equipped with the latest technology with high sensitivity GPS, which allows you to locate up to 9 dogs at a distance of up to 20 km. The device uses GPS and RF technology and is equipped with many functions. It offers simple practical controls and a display that is easy to read even in direct sunlight.

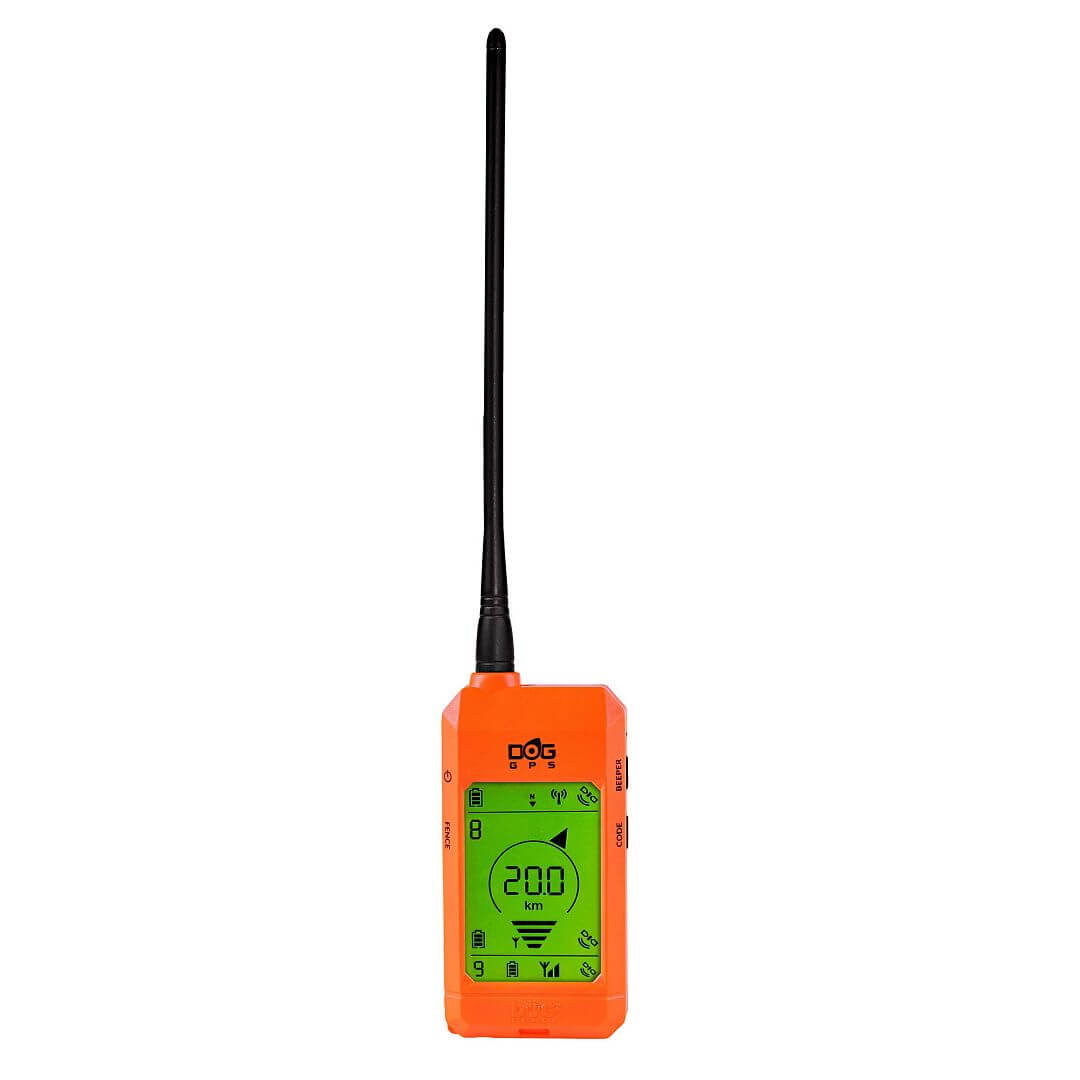

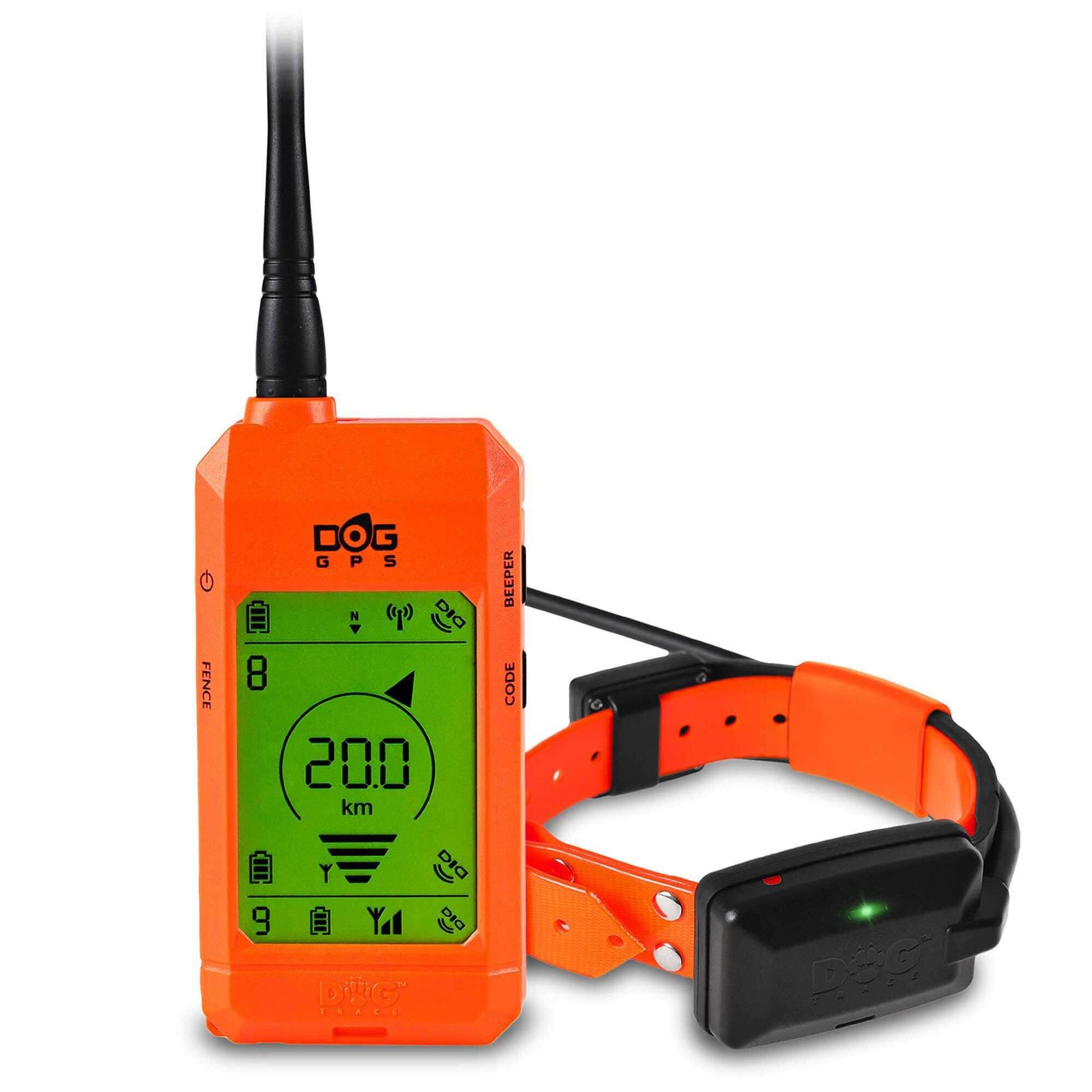

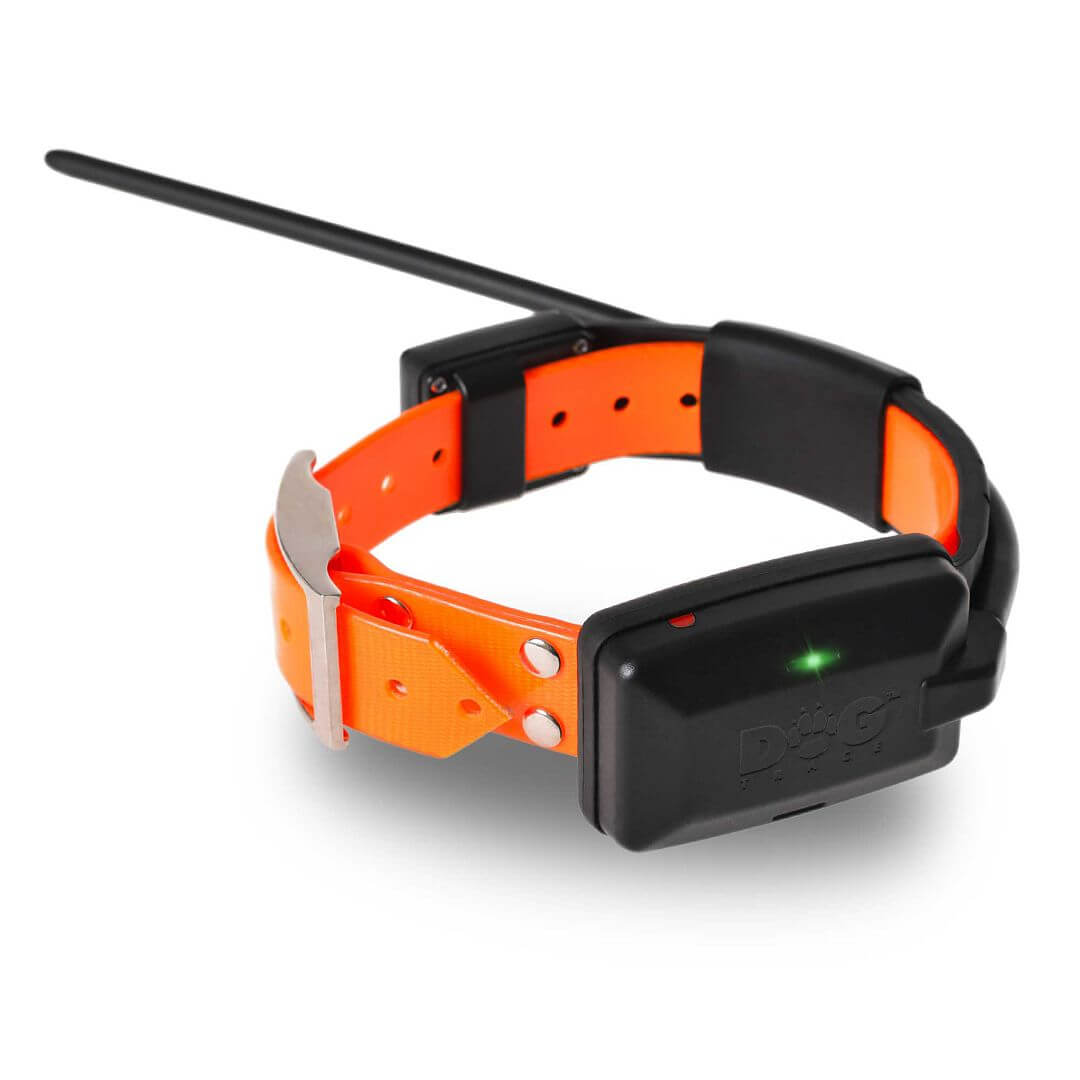

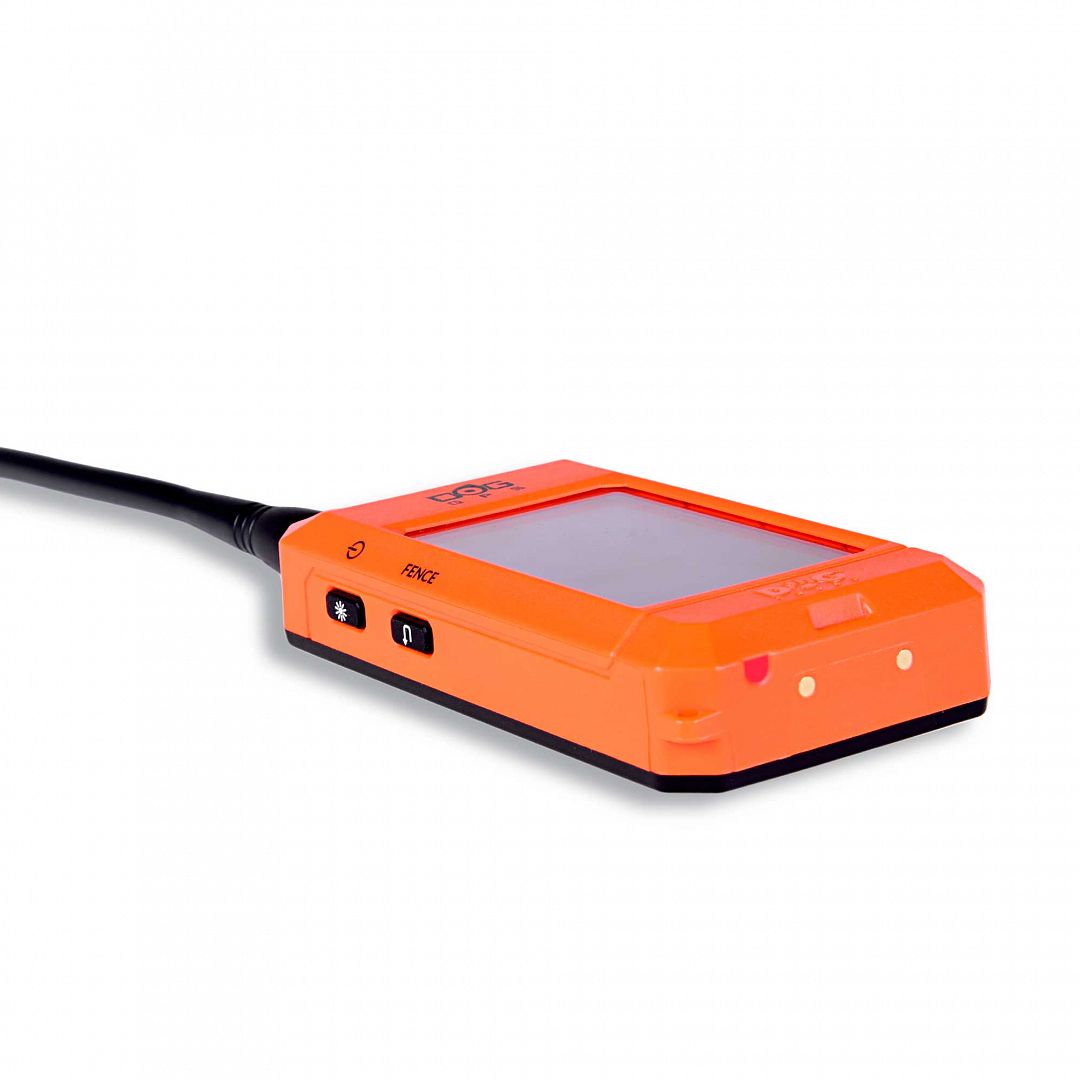

DOG GPS X20 is a device used to search (locate) your dogs up to a distance of 20 km. It consists of a transmitter, which is placed on the dog's collar and a receiver (handheld device) in neon orange, on which the handler monitors the distance and direction to the dogs' position. The transmitter obtains its position from GPS satellites and uses a radio frequency signal (RF) to transmit position information to the handler's receiver.

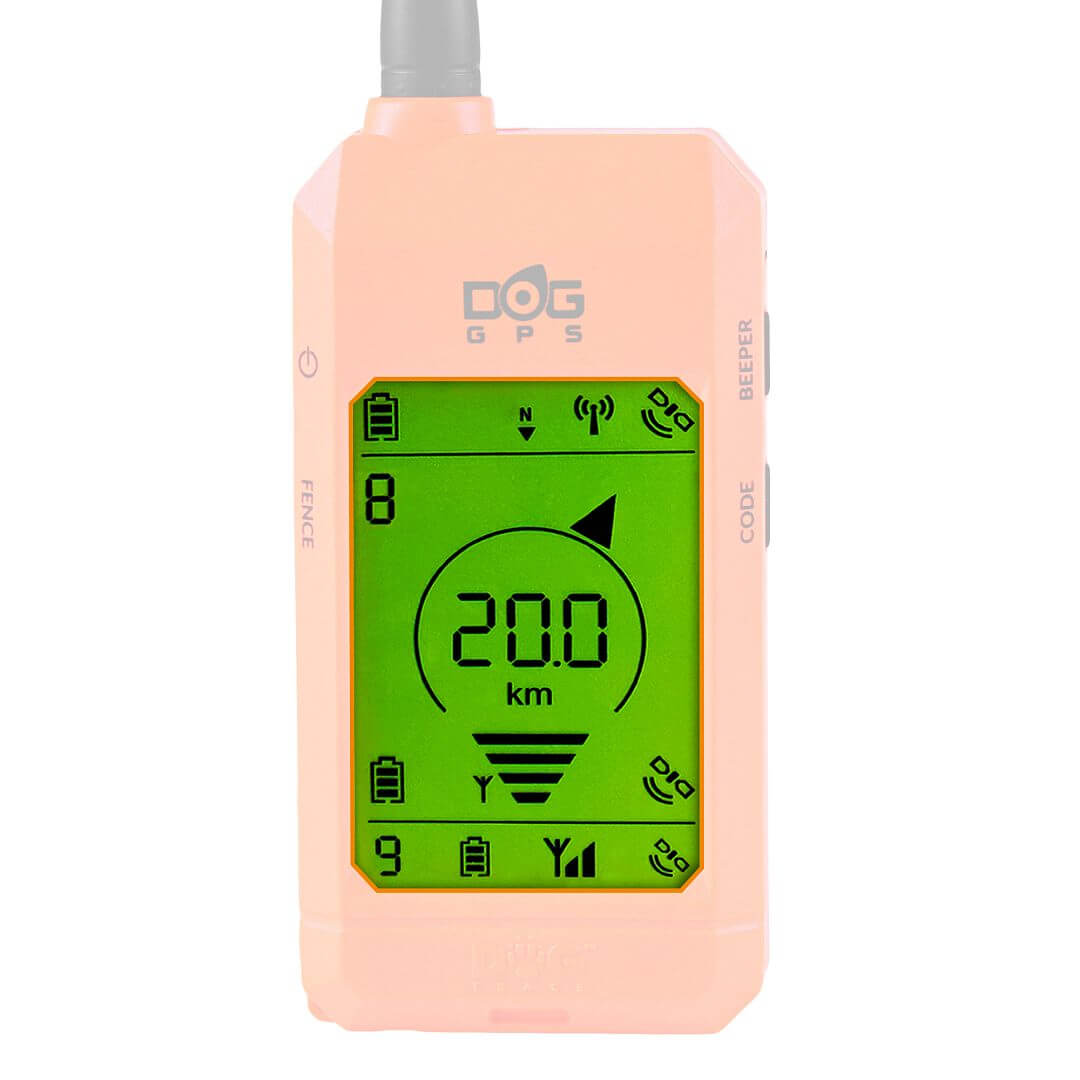

On the receiver's display, you can also monitor the strength of the RF signal, the accuracy of the GPS position, and the battery status of the transmitter and receiver.
DOG GPS X20 also has additional functions - compass, FENCE - an acoustic boundary that provides information about your dog exceeding the set distance from the receiver. It also has a BEEPER function, thanks to which you can easily determine whether your dog is moving or standing still. The receiver allows you to save your current position and then navigate to this position (waypoint function).
Range | 20 km |
Number of stimulation pulses | 0 |
Number of dogs | 1 - 9 |
Belt material plastic | plastic |
Belt size | 25 mm × 70 cm |
Smallest adjustable circumference | 32 cm |
Transmitter and receiver power supply | Li-Pol 1900 mAh |
Receiver dimensions | 119 × 62 × 15 mm |
Transmitter dimensions | 77 × 45 × 29 mm |
Receiver weight | 192 g |
Transmitter weight | 142 g |
BEEPER | |
FENCE | |
WAYPOINT | |
Compass | |
For breeds | medium, large |
Device features:
The range between the transmitter and receiver is up to 20 km in direct visibility (depending on terrain, vegetation and other factors)
The ability to track up to 9 dogs on one receiver
The most modern technology with high GPS sensitivity in both the receiver and transmitter
Easy-to-read receiver display - in direct sunlight and in the dark
Fully waterproof receiver and transmitter
Long battery life (more than 40 hours) - both the receiver and transmitter are rechargeable
Compass function
FENCE function - acoustic boundary to mark out the dog's space
BEEPER function - detection of dog movement/standing
Waypoint function - possibility of saving 4 GPS coordinates of the receiver - navigation to these
points
CAR mode function - mode for using the receiver (handheld device) in a vehicle
Quick start of the receiver (handheld device)
The smallest and lightest collar (transmitter) among competing devices
Simple control

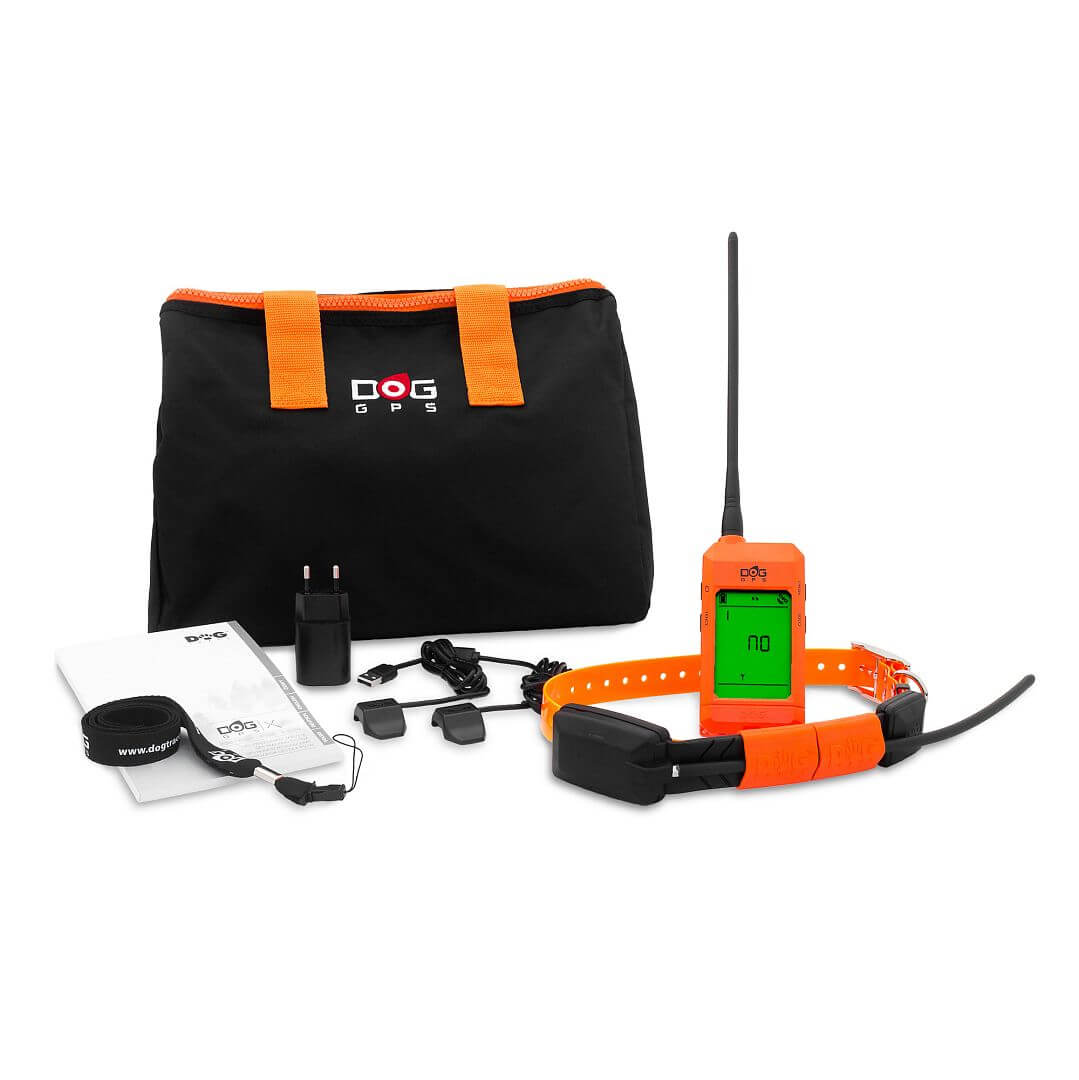

Package contents:
Receiver incl. Li-Pol 1900 mAh battery

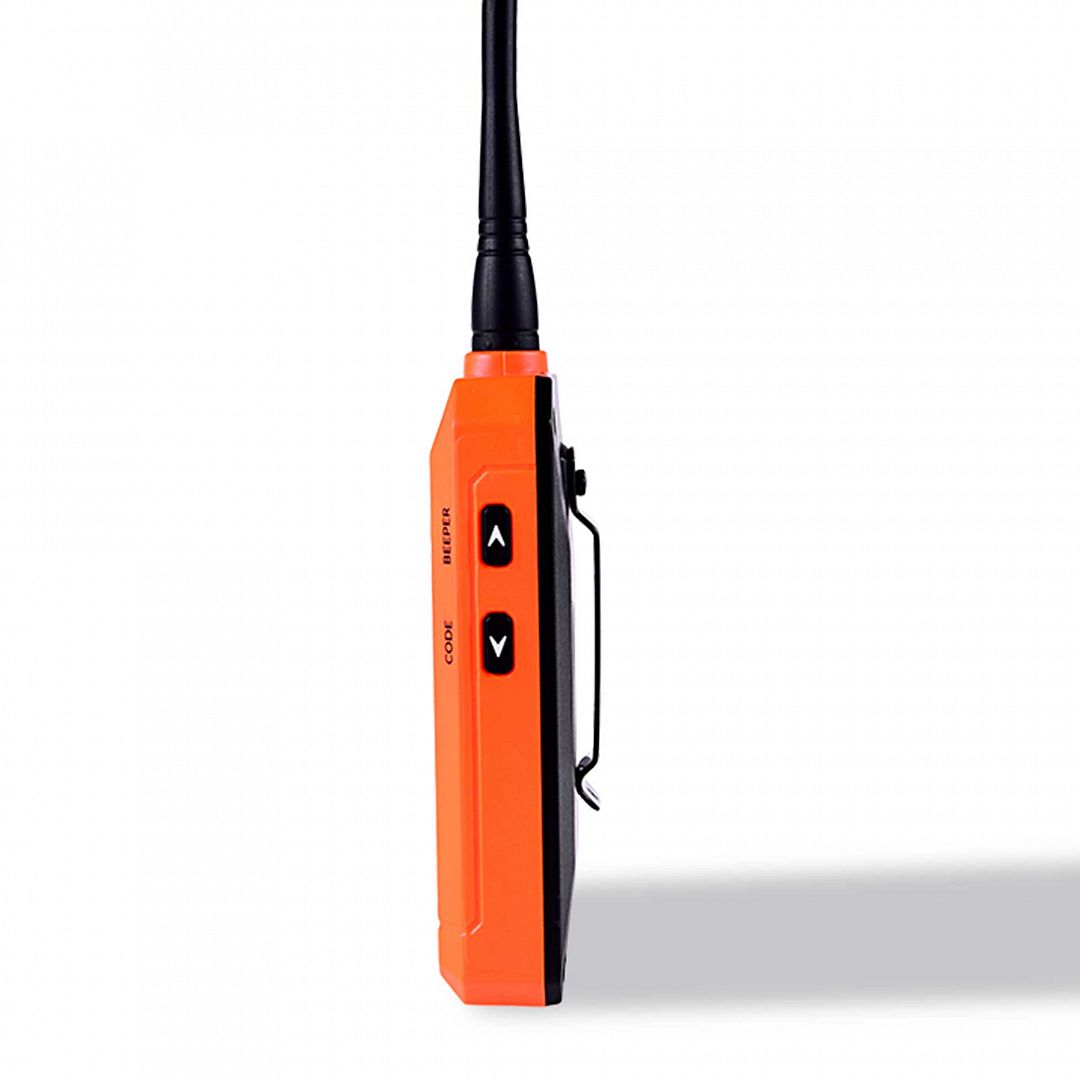

Clip for hanging the receiver on a belt and 2 screws

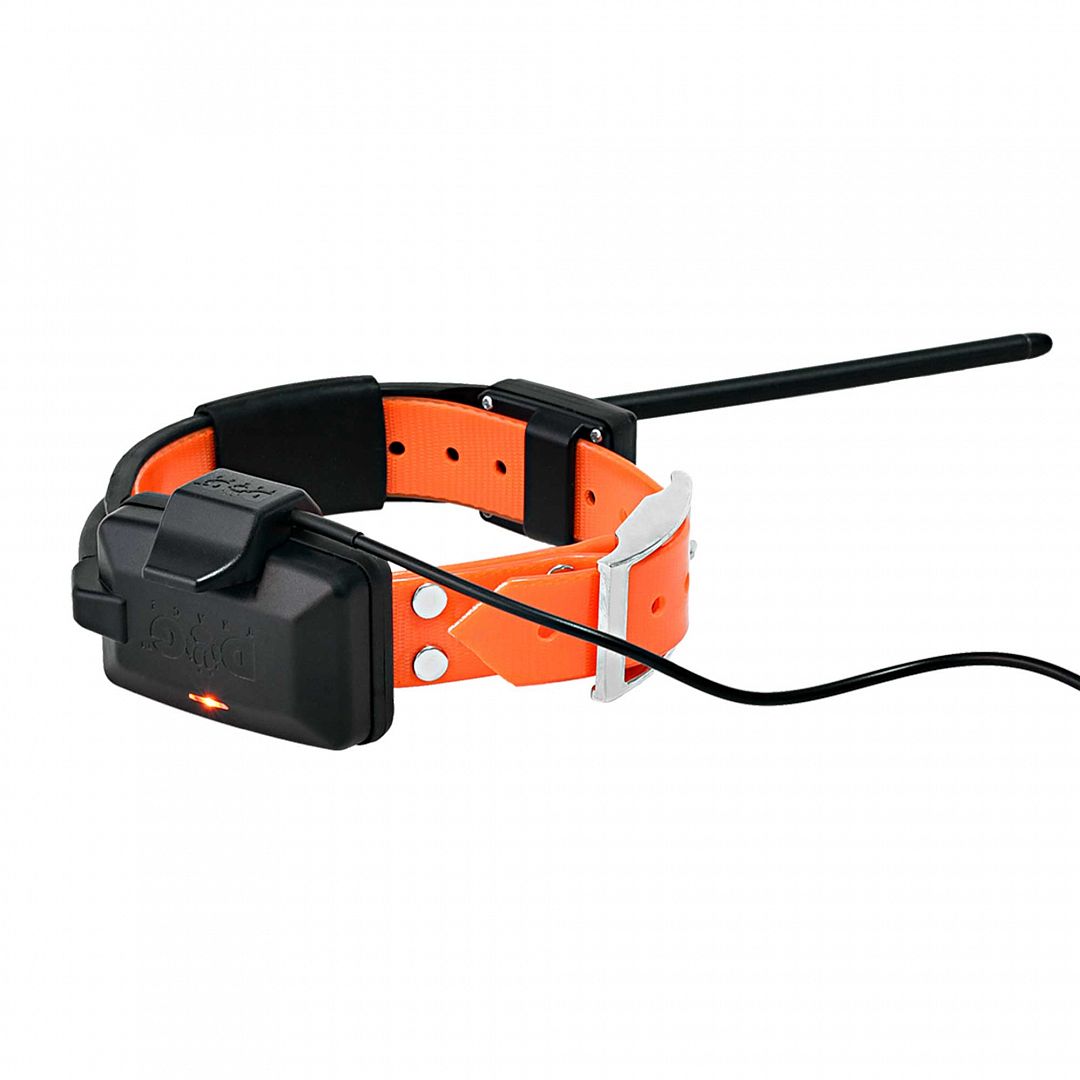

Transmitter incl. Li-Pol 1900 mAh battery and plastic orange strap

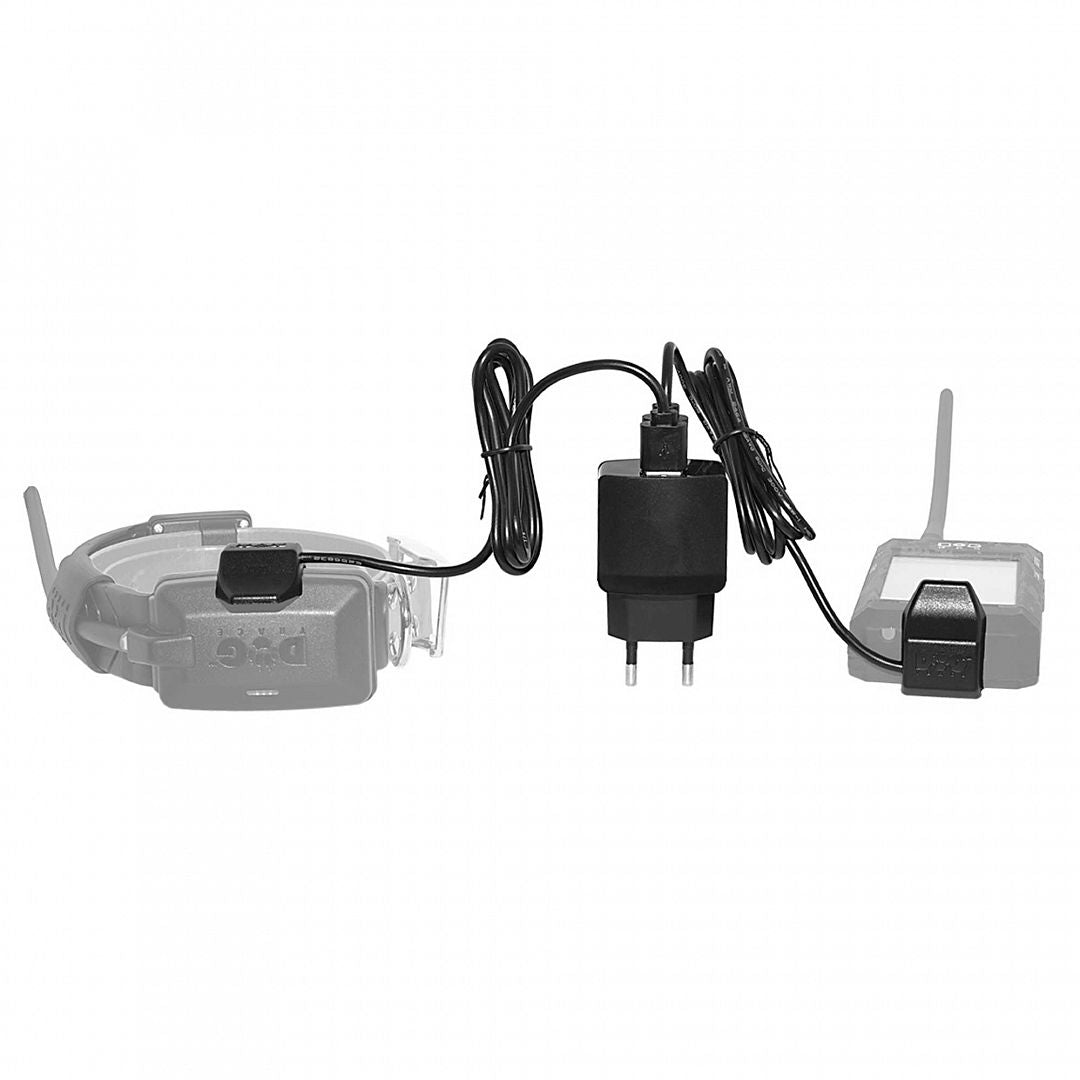

Dual power adapter, 2 USB cables with charging clip for GPS
Lanyard for hanging the receiver
Instructions and warranty card
Transport bag
Plastic strap 25 mm × 70 cm - the smallest adjustable circumference is 32 cm
Optional accessories:
Spare transmitter and receiver
Multi-colored straps
Li-Pol 1900 mAh battery
Power adapter with USB cable and clip for GPS
Spare silicone grommets for the transmitter - black, orange
